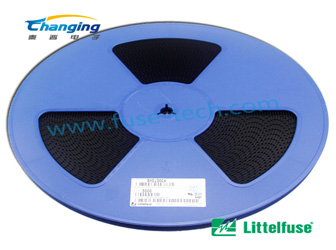

SMDJ17A
力特SMDJ17A 專門用于保護敏感電子設備，使其免受雷擊和其他瞬態電壓事件引起的瞬態電壓侵害。 功能與特色: 表面封裝可優化面板空間 小尺寸封裝 典型的故障模式是因超過指定電壓或電流而造成的短路 錫絲測試基于JEDEC JESD201A的4a和4c表進行。 IEC-61000-4-2 ESD 15kV(Air), 8kV（接觸放電）。 ESD數據線路保護符合IEC 61000-4-2（IEC801-2） EFT數據線路保護符合IEC 61000-4-4（IEC801-4） 內置式應力消除 典型最高溫度系數ΔVBR = 0.1% × VBR@25°C × ΔT 鈍化玻璃芯片接點 10×1000μs波形時的峰值脈沖功率為3000W，重復頻率（工作循環）:0.01% 快速的響應時間: 從0伏特至VBR最小值通常小于1.0ps 出色的箝位能力 增量浪涌電阻較低 標準情況下，在電壓高于12V時，IR小于2μA 可保證高溫焊接: 接線端260°C/40秒 塑料封裝已獲UL易燃性分級94V-O認證 亞光無鉛鍍錫 不含鹵素且符合RoHS標準
|
Part Number (Uni) |
Part Number (Bi) |
Marking (UNI) |
Marking (BI) |
Reverse Stand off Voltage VR(Volts) |
MIN Breakdown VoltageVBR @IT(V) |
Max Breakdown VoltageVBR @IT(V) |
TestCurrent IT(mA) |
Maximum Clamping VoltageVC @Ipp(V) |
Maximum PeakCurrent Ipp(A) |
Maximum Reverse LeakageIR @VR(μA) |
Data Sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SMDJ220A | SMDJ220CA | PKE | DKE | 220.0 | 242.00 | 281.60 | 1 | 356.0 | 8.4 | 2 |
 |
| SMDJ180A | SMDJ180CA | PHT | DHT | 180.0 | 198.00 | 203.00 | 1 | 292.0 | 10.3 | 2 |
|
| SMDJ170A | SMDJ170CA | PHR | DHR | 170.0 | 189.00 | 209.00 | 1 | 275.0 | 10.9 | 2 |
|
| SMDJ160A | SMDJ160CA | PHP | DHP | 160.0 | 178.00 | 197.00 | 1 | 259.00 | 11.6 | 2 |
|
| SMDJ150A | SMDJ150CA | PHM | DHM | 150.0 | 167.00 | 185.00 | 1 | 243.0 | 12.3 | 2 |
|
| SMDJ120A | SMDJ120CA | PHG | DHG | 120.0 | 133.00 | 147.00 | 1 | 193.0 | 15.5 | 2 |
|
| SMDJ130A | SMDJ130CA | PHK | DHK | 130.0 | 144.00 | 159.00 | 1 | 209.0 | 14.4 | 2 |
|
| SMDJ110A | SMDJ110CA | PHE | DHE | 110.0 | 122.00 | 135.00 | 1 | 177.0 | 16.9 | 2 |
|
| SMDJ100A | SMDJ100CA | RGZ | DGZ | 100.0 | 111.00 | 123.00 | 1 | 162.0 | 18.5 | 2 |
|
| SMDJ90A | SMDJ90CA | RGX | DGX | 90.0 | 100.00 | 111.00 | 1 | 146.0 | 20.5 | 2 |
|
| SMDJ85A | SMDJ85CA | RGV | DGV | 85.0 | 94.40 | 104.00 | 1 | 137.0 | 21.9 | 2 |
|
| SMDJ78A | SMDJ78CA | RGT | DGT | 78.0 | 86.70 | 95.80 | 1 | 126.0 | 23.8 | 2 |
|
| SMDJ75A | SMDJ75CA | RGR | DGR | 75.0 | 83.30 | 92.10 | 1 | 121.0 | 24.8 | 2 |
|
| SMDJ70A | SMDJ70CA | RGP | DGP | 70.0 | 77.80 | 86.00 | 1 | 113.0 | 26.5 | 2 |
|
| SMDJ64A | SMDJ64CA | RGM | DGM | 64.0 | 71.10 | 78.60 | 1 | 103.0 | 29.1 | 2 |
|
| SMDJ60A | SMDJ60CA | RGK | DGK | 60.0 | 66.70 | 73.70 | 1 | 96.8 | 31.0 | 2 |
|
| SMDJ58A | SMDJ58CA | RGG | DGG | 58.0 | 64.40 | 71.20 | 1 | 93.6 | 32.1 | 2 |
|
| SMDJ54A | SMDJ54CA | RGE | DGE | 54.0 | 60.00 | 66.30 | 1 | 87.1 | 34.4 | 2 |
|
| SMDJ51A | SMDJ51CA | PFZ | DFZ | 51.0 | 56.70 | 62.70 | 1 | 82.4 | 36.4 | 2 |
|
| SMDJ48A | SMDJ48CA | PFX | DFX | 48.0 | 53.30 | 58.90 | 1 | 77.4 | 38.8 | 2 |
|
| SMDJ45A | SMDJ45CA | PFV | DFV | 45.0 | 50.00 | 55.30 | 1 | 72.7 | 41.3 | 2 |
|
| SMDJ43A | SMDJ43CA | PFT | DFT | 43.0 | 47.80 | 52.80 | 1 | 69.4 | 43.2 | 2 |
|
| SMDJ40A | SMDJ40CA | PFR | DFR | 40.0 | 44.40 | 49.10 | 1 | 64.5 | 46.5 | 2 |
|
| SMDJ36A | SMDJ36CA | PFP | DFP | 36.0 | 40.00 | 44.20 | 1 | 58.1 | 51.6 | 2 |
|
| SMDJ33A | SMDJ33CA | PFM | DFM | 33.0 | 36.70 | 40.60 | 1 | 53.3 | 56.3 | 2 |
|
| SMDJ30A | SMDJ30CA | PFK | DFK | 30.0 | 33.30 | 36.80 | 1 | 48.4 | 62.0 | 2 |
|
| SMDJ28A | SMDJ28CA | PFG | DFG | 28.0 | 31.10 | 34.40 | 1 | 45.4 | 66.1 | 2 |
|
| SMDJ26A | SMDJ26CA | PFE | DFE | 26.0 | 28.90 | 31.90 | 1 | 42.1 | 71.3 | 2 |
|
| SMDJ24A | SMDJ24CA | PEZ | DEZ | 24.0 | 26.70 | 29.50 | 1 | 38.9 | 77.0 | 2 |
|
| SMDJ22A | SMDJ22CA | PEX | DEX | 22.0 | 24.40 | 26.90 | 1 | 35.5 | 84.5 | 2 |
|
| SMDJ20A | SMDJ20CA | PEV | DEV | 20.0 | 22.20 | 24.50 | 1 | 32.4 | 92.6 | 2 |
|
| SMDJ18A | SMDJ18CA | PET | DET | 18.0 | 20.00 | 22.10 | 1 | 29.2 | 102.7 | 2 |
|
| SMDJ17A | SMDJ17CA | PER | DER | 17.0 | 18.90 | 20.90 | 1 | 27.6 | 108.7 | 2 |
|
| SMDJ16A | SMDJ16CA | PEP | DEP | 16.0 | 17.80 | 19.70 | 1 | 26.0 | 115.4 | 2 |
|
| SMDJ15A | SMDJ15CA | PEM | DEM | 15.0 | 16.70 | 18.50 | 1 | 24.4 | 123.0 | 2 |
|
| SMDJ14A | SMDJ14CA | PEK | DEK | 14.0 | 15.60 | 17.20 | 1 | 23.2 | 129.3 | 2 |
|
| SMDJ13A | SMDJ13CA | PEG | DEG | 13.0 | 14.40 | 15.90 | 1 | 21.5 | 139.5 | 2 |
|
| SMDJ12A | SMDJ12CA | PEE | DEE | 12.0 | 13.30 | 14.70 | 1 | 19.9 | 150.8 | 2 |
|
| SMDJ11A | SMDJ11CA | PDZ | DDZ | 11.0 | 12.20 | 13.50 | 1 | 18.2 | 164.8 | 2 |
|
| SMDJ10A | SMDJ10CA | PDX | DDX | 10.0 | 11.10 | 12.30 | 1 | 17.0 | 176.5 | 5 |
|
| SMDJ9.0A | SMDJ9.0CA | PDV | DDV | 9.0 | 10.00 | 11.10 | 1 | 15.4 | 194.8 | 10 |
|
| SMDJ8.5A | SMDJ8.5CA | PDT | DDT | 8.5 | 9.44 | 10.40 | 1 | 14.4 | 208.3 | 20 |
|
| SMDJ8.0A | SMDJ8.0CA | PDR | DDR | 8.0 | 8.89 | 9.83 | 1 | 13.6 | 220.6 | 50 |
|
| SMDJ7.5A | SMDJ7.5CA | PDP | DDP | 7.5 | 8.33 | 9.21 | 1 | 12.9 | 232.6 | 100 |
|
| SMDJ7.0A | SMDJ7.0CA | PDM | DDM | 7.0 | 7.78 | 8.60 | 10 | 12.0 | 250.0 | 200 |
|
| SMDJ6.5A | SMDJ6.5CA | RDK | DDK | 6.5 | 7.22 | 7.98 | 10 | 11.2 | 267.9 | 500 |
|
| SMDJ6.0A | SMDJ6.0CA | RDG | DDG | 6.0 | 6.67 | 7.37 | 10 | 10.3 | 291.3 | 800 |
|
| SMDJ5.0A | SMDJ5.0CA | RDE | DDE | 5.0 | 6.40 | 7.00 | 10 | 9.2 | 326.1 | 800 |
|
